BMW E46 M3 S54 Headgasket replacement
We treat out BMW E46 M3 Headgasket replacements as a perfect opportunity to refresh pretty much all the cylinder head water, oil, air O-rings, Seals, Gaskets.
We provide an extremely comprehensive overhaul when carrying out the common BMW E46 M3 S54 headgasket replacement.
| Part description | Qty |
| Headgasket | 1 |
| Head bolt set | 1 |
| Head dowels | 2 |
| Vanos supply O-ring Front | 1 |
| Vanos supply O-ring Rear | 1 |
| Vanos Supply / Cam Bridge Green O-ring | 1 |
| Camshaft sensor O-rings | 2 |
| Exhaust Chain guide bolt sealing washer | 1 |
| Inlet Chain guide bolt sealing washer | 1 |
| Vanos pressure valve filter | 1 |
| Vanos pressure valve filter O-ring | 1 |
| Vanos pressure valve body O-ring | 1 |
| Vanos steel gasket | 1 |
| Vanos oil pipe copper washers | 4 |
| Oil drain down tube copper washers | 2 |
| Cam hub torx bolts for sprockets | 12 |
| Vanos gearbox hex bolts | 12 |
| Head chain guide rail | 1 |
| Head chain guide rail O-ring | 1 |
| Chain tensioner sealing washer | 1 |
| Blue BMW Antifreeze | 3L |
| Thermostat lower O-ring | 1 |
| Thermostat upper O-ring | 2 |
| Vacuum rail hose clamp | 1 |
| Fuel supply pipe O-ring | 1 |
| Water rail to cylinder head O-rings | 3 |
| Rocker Cover Gasket (outer) | 1 |
| Rocker Cover spark plug gaskets x6 (inners) | 6 |
| Rocker Cover Nut Seal Rings x15 | 15 |
| Throttle body to head O-ring | 6 |
| Exhaust Manifold Gaskets x6 | 6 |
| Air emissions valve to head gasket | 1 |
Mandatory Cylinder Head work at the engine machine shop:
Cylinder Head Service - Stage 1 - NO LONGER AVAILABLE
Cylinder Head Service - Stage 2
Includes;
Chemical Bath
Pressure Test
Straightness Check
Re-surface
Valve Stem Oil Seals
Valve & Seat Lapping
Collection/Delivery to/from Machine Shop
Recommendations:
Camshafts & Followers:

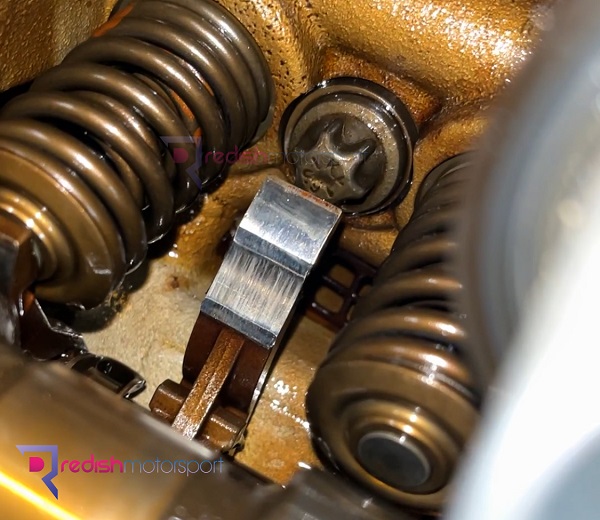

We're seeing a high percentage of S54's with worn/flat Followers as well as Camshaft scratches
Therefore, we recommend you take full advantage of the FREE OF CHARGE LABOUR to have new Camshafts & Followers installed to give maximum longevity to your S54 top end.
This can be, Schrick, BMW, Turner, CAT, etc.
From OEM specs, to CSL specs, to race specs, this can enhance your driving experience.
It's not a mandatory option, and therefore only a recommendation.
"Pay for the Camshafts & Followers and we'll install them for free".
| 269 / 270 | Factory | Vanos OK |
| 280 / 272 | CSL | Vanos OK |
| 288 / 280 | Track | Vanos OK |
| 296 / 288 | Race | De-Vanos |
| 304 / 296 | Full Race | De-Vanos |
| 312 / 304 | Full Race | De-Vanos |
PLEASE NOTE:
We're finding some E46 M3's with extremely dirty/stained/clogged/tarnished Cylinder Heads (due to incorrect oil grade, poor oil quality, or extended service intervals).
Some vehicles require the Cylinder Head to be chemically cleaned in a Hot Wash bath twice (or even three times).
Optional Extra:
We are also able to thoroughly clean the Rocker Cover in the Hot Wash tank.
(Some vehicle need this, and some don't. We can advise once we've removed the Cover).
To make a booking for this service we require a £500 deposit.
